No vehicle has been selected. This part may not be compatible with your vehicle.

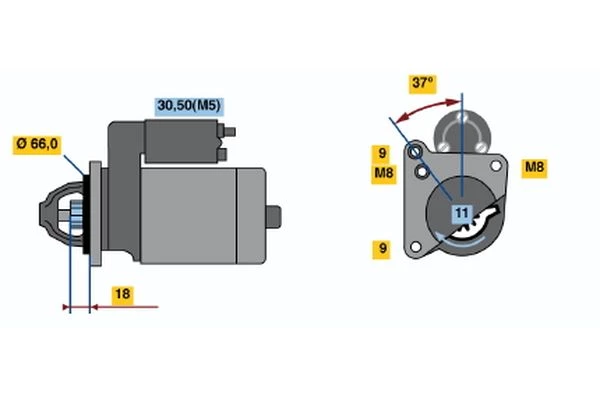

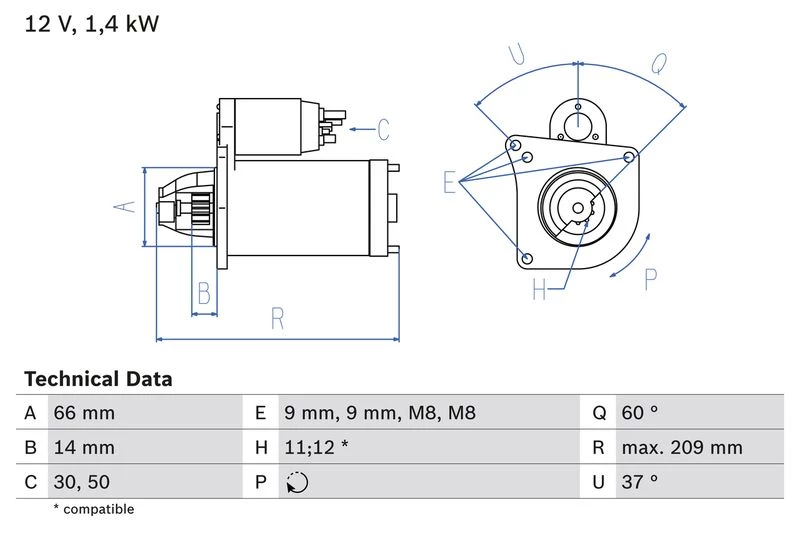

Properties
| Mounting bore angle measurement (°) | 37 |
| Jaw opening angle measurement (°) | 60 |
| Mounting angle (°) | 37 |
| Starter type | self-supporting |
| Pinion home position (mm) | 14 |
| Clamp | 50 |
| Number of threaded holes | 2 |
| Flange Ø (mm) | 66 |
| Position/degree (°) | links |
| Thread size 3 | m8x1.25 |
| Number of mounting bores | 3 |
| Bore Ø 2 (mm) | 9 |
| Bore Ø (mm) | 9 |
| Number of teeth |
|
| Rotation direction | clockwise rotation |
| Starter output (kW) | 1.4 |
| Voltage (V) | 12 |
| Thread size 2 | m8x1.25 |
| Length (mm) | 209 |
Accepted Payment Options
Shipping Options
Express delivery
Express delivery
Express delivery
Express delivery
| Manufacturer | Productnumber |
| OPEL | 5802FG |
| FIAT | 9637813680 |
| FIAT | K9637813680 |
| VAUXHALL | 5802FG |
| PEUGEOT | 5802 AZ , 5802AZ |
| PEUGEOT | 5802 FG , 5802FG |
| PEUGEOT | 5802 FP , 5802FP |
| PEUGEOT | 5802 Y4 , 5802Y4 |
| PEUGEOT | 5802 Y5 , 5802Y5 |
| PEUGEOT | 5802 Y6 , 5802Y6 |
| PEUGEOT | 96 408 252 80 , 9640825280 |
| PEUGEOT | 96 466 799 80 , 9646679980 |
| PEUGEOT | 96 640 169 80 , 9664016980 |
| PEUGEOT | 96 882 684 80 , 9688268480 |
| PEUGEOT | 96 882 685 80 , 9688268580 |
| PEUGEOT | 9640 825 280 , 9640825280 |
| PEUGEOT | 9646 679 980 , 9646679980 |
| PEUGEOT | 98 016 675 80 , 9801667580 |
| DS | 5802FG |
| CITROËN | 5802 AZ , 5802AZ |
| CITROËN | 5802 FG , 5802FG |
| CITROËN | 5802 FP , 5802FP |
| CITROËN | 5802 Y4 , 5802Y4 |
| CITROËN | 5802 Y5 , 5802Y5 |
| CITROËN | 5802 Y6 , 5802Y6 |
| CITROËN | 96 40 825 280 , 9640825280 |
| CITROËN | 96 408 252 80 , 9640825280 |
| TOYOTA | 28100-YV010 , 28100YV010 |
| TOYOTA | 28100-YV011 , 28100YV011 |
| TOYOTA | 28100YV010 |
| TOYOTA | 28100YV011 |
| Usage numbers |
| 2165 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 CITROËN |
||||||||
 FIAT |
||||||||
 OPEL |
||||||||
 PEUGEOT |
||||||||
 TOYOTA |
Do you have any questions about this product? Please feel free to contact us.
Partxl proudly delivers the most extensive range of Bosch automotive products across the GCC region. As a trusted supplier for garages, wholesalers, and car enthusiasts, we stock both original equipment (OE) and high-quality aftermarket Bosch parts to meet all your vehicle maintenance and repair needs. Whether you're looking for Bosch fuel injectors, sensors, spark plugs, filters, braking systems, alternators, or diagnostic tools, Partxl has you covered with one of the widest selections available.
Thanks to our central warehouse located in Al Quoz 3, Dubai, and a strong network of suppliers, we ensure fast, reliable delivery—same-day or next-day across the UAE and within 3 days to the wider GCC. Our clients benefit from a seamless shopping experience, advanced part search options by VIN, engine code, or OEM number, and expert support to find the perfect fit for any vehicle. Whether you're servicing European, Asian, or American vehicles, trust Partxl to deliver Bosch quality with speed and precision.
There are no files to download
Yes you can return it free and easy withing 14 days.
When the part number matches or when you buy our 100% fit service! When you buy our fit service we will check with the VIN number if the part fits 100%
Yes when we have it on stock on one of our stores in Dubai or Al Ain. Please see the pickup date details on the product page, or call us for more the latest dispatch info or pickup times
Yes on every purchase you have a year manufacturer warranty through the distributor.
Our customers can pick it up, or we send our goods within 1 to 2 working days. So within 2 and 3 days, you will receive your parts if they are in stock at Partxl or at our manufacturers.
